Hober 5.5Kw Solar Pumping inverter (7.5HP) MPPT Hybrid vfd (3 Phase)

Hober 5.5Kw Solar Pumping inverter (7.5HP) MPPT Hybrid vfd (3 Phase)

The Hober 5.5Kw Solar Pumping inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. The inverter is appropriate for three-phase pumps with power requirements below 5500 Watts.

Smart Inverter

• Full automatic operation, no need programming, user-friendly
• Modular design, easy install , operate & maintain
• GPRS or SPMCS remote control for option

Efficient

• 1:1 match to AC pumps with strong overload capacity
• 30% more water output with advanced inverter control algorithm
• Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
• Good ROI (Return on Investment) against diesel powered pumping

Reliable

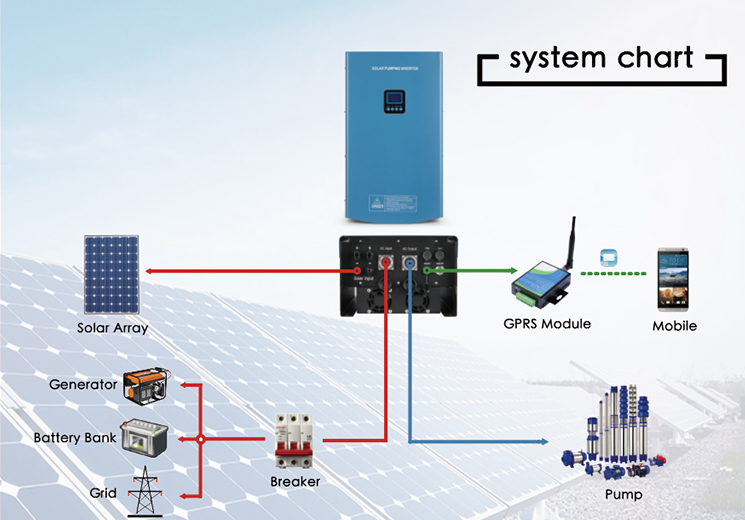

• Hybrid function – support solar power, grid power/generator input.
• Multi power sources work as complementary to achieve system working 24 hours per day
• IP65 design, continuous full-load operation between -10℃ to 60℃
• Compatible with all AC pump types

Comprehensive Protections

• Soft start
• DC Input Anti-reverse
• AC Input/Output Phase lost(3Phase)
• AC Output Short Circuit
• AC Output Unbalance (3Phase)
• Pump Dry run protection By sensor/ software
• Water Over Flow of Tank
• Solar Low power
• Over Load
• AC Output Over Current
